Hardware diagrams & scope of delivery

Table of contents

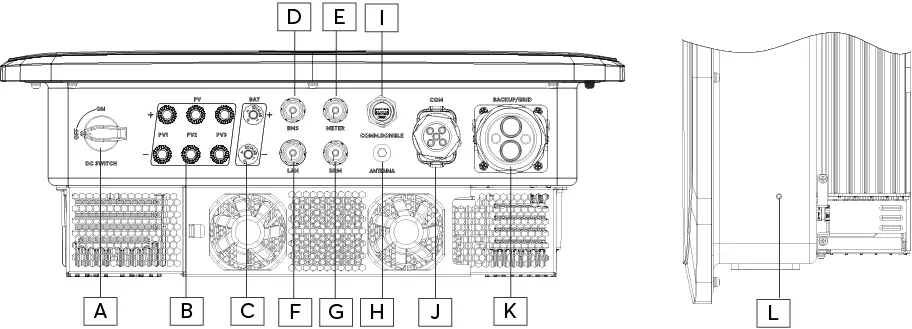

    Hardware diagram:
    Inverter vision three

    ADC switchGDRM connector
    BPV1, PV2, PV3 connectionHAntenna (Bluetooth/Wi-Fi)
    CBattery connectionIComm. dongle USB port
    (unused)
    DConnection BMS (battery management system)JCOM connection
    EMeter connectionKConnection AC backup / AC grid
    FLAN connectionLEarth connection
    Inverter vision three display
    OLC-DisplaySUp Button/Increase value
    Pred: ErrorTDown Button/Decrease value
    Qblue: LAN/Wi-Fi statusUConfirm Button
    Rgreen: Ready for operationVBack Button/Exit menu

    Scope of delivery:
    Inverter vision three

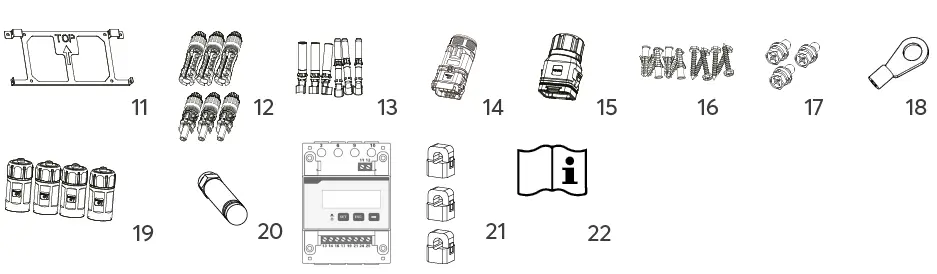

    In the Inverter vision three box
    11Wall bracket173x Screws for inverter mounting
    12PV connector (Stäubli MC4)18Cable lug for earthing
    13PV pin contacts19

    4x waterproof plug housings:

    • 1x for RJ45 plug coming from the meter
    • 1x for LAN plug coming from the router
    • 2x spare
    14AC plug20Antenna
    15Communication plug (optional)21Counter with CT terminals
    166x Screws and wall plugs for wall mounting22Quick start guide and safety instructions

    Hardware diagram:
    Inverter vision one

    ADC switchIComm. dongle USB port
    (unused)
    BPV1JAC GRID connection
    CPV2KBMS connection
    (battery management system)
    DBattery connectionLWaterproof cover
    EMeter connectionMDRM
    FAntenna (Bluetooth / WiFiNLAN connection
    GCluster IN connectionOAC BACKUP connection
    HCluster OUT connectionPGround connection

    Scope of delivery:
    Inverter vision one

    In the Inverter vision one box
    11Wall bracket174x screws for wall mounting
    12PV connector (Stäubli MC4)18Antenna
    13PV pin contacts19Cable lug for earthing cable
    14AC plug GRID (white ring)20Meter with CT terminal
    15AC.secker BACKUP (red ring)21

    2x waterproof plug housings:

    • 1x for LAN plug coming from the router
    • 1x spare
    16Meter adapter with ferrules22Quick start guide and safety instructions
    Inverter vision one display
    OLC-DisplaySUp Button/Increase value
    Pred: ErrorTDown Button/Decrease value
    Qblue: LAN/Wi-Fi statusUConfirm Button
    Rgreen: Ready for operationVBack Button/Exit menu

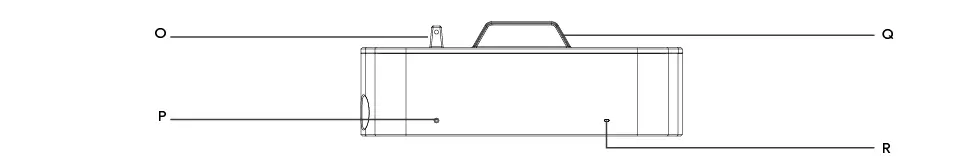

    Hardware diagram:
    Battery vision top pack & pack

    AHoles for mounting bracketFSoC LEDsKDC OUT+PHole for pack mounting
    BHole for pack fasteningGStatus LEDLFasteners for DC cableQHandle
    CB-Start switchHDC switchMHoles for mounting bracketRStatus LED
    DMains switchIBMSNGround terminal
    EBMS status LEDJDC OUT-OPack fixings

    Scope of delivery:
    Battery vision top pack & pack

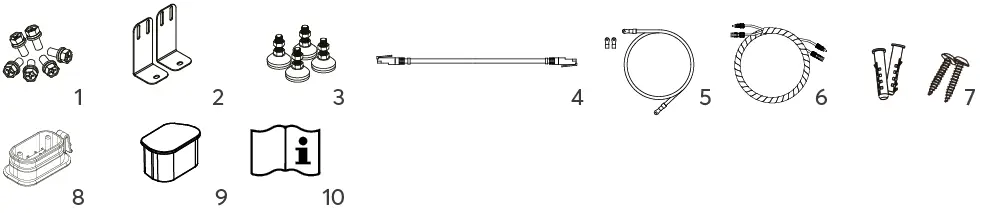

    In the Battery vision top pack box
    14x screws (M5) for securing the wall brackets
    2x screws for securing the top pack    		72x screws for wall fixing
    2Wall brackets8Jumper plug
    3Feet9Protective cover for pack connections
    4BMS inverter communication cable (1.5 m)10Safety instructions
    5Earthing cable with 2 additional cable lugs
    6DC cable (1.5 m)
    In the Battery vision pack box(es).
    232x screws (M5) each for securing the pack
    24Safety instructions
